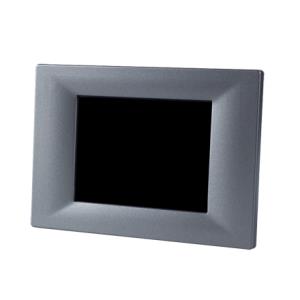

3.5in Qvga Ti Am3517 600MHz 256MB With Win Ce 6.0

Introduction

The TPC-31T model is a compact platform without redundant functions, and has been designed for small-sized operator interface applications. It has a 3.5" TFT LCD display which is a cost effective choice for a limited budget. Its RISC kernel, the TI Cortex-A8 processor consumes minimum power without sacrificing performance. The TPC-31T/61T has a 10/100Base-T Ethernet port offering solid communication ability and comes bundled with a Windows® CE OS that supports Thin-Client solutions. The built-in Windows CE OS platform lets the TPC-31T/61T become an Open HMI solution for system integration.

Display

Display diagonal

8.89 cm (3.5")

Display technology

LCD

LED backlight

Yes

Display resolution

320 x 240 pixels

Display brightness

450 cd/m²

Touchscreen technology

Resistive

Contrast ratio

300:1

Viewing angle, horizontal

120°

Viewing angle, vertical

110°

Performance

Ethernet LAN

Yes

Ethernet LAN data rates

10,100 Mbit/s

Cabling technology

10/100Base-T(X)

Internal memory

256 MB

Product colour

Silver

Ports & interfaces

USB 2.0 Type-A ports quantity

1

Power

Power consumption (typical)

8 W

Weight & dimensions

Width

120.8 mm

Depth

26.5 mm

Height

85.5 mm

Weight

0.25 g

Operational conditions

Operating relative humidity (H-H)

10 - 95%

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Other features

Windows operating systems supported

Windows CE
