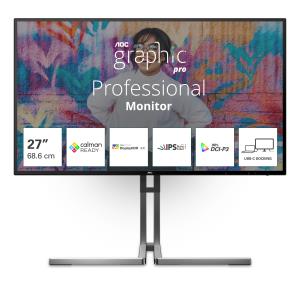

Desktop USB-C Monitor - U27U3CV - 27in - 3840x2160 (4K UHD) - Nano IPS 4ms

Introduction

Precision-engineered for graphics excellence with hardware-calibrated precision (Delta E<2), calman ready calibration, and UHD Nano IPS display
The AOC Graphic Pro U27U3CV delivers exceptional color accuracy straight out of the box, thanks to its hardware calibration achieving Delta E<2 (sRGB). Fine-tune settings effortlessly with the Calman Ready feature for optimal performance. With 98% coverage of the DCI P3, 100% of the sRGB and 100% of the Rec 709 color space, it's ideal for graphic and photo editing, offering superior quality compared to standard monitors. Its Delta E < 2 accuracy ensures precise color rendering, surpassing human eye perception. Enhanced with a 4-sided frameless screen, Vesa DisplayHDR 400, USB-C docking station, and sleek design, it stands as the top choice for professionals.

Monitor Type

TV / Monitor

Monitor

Model Specifications

Model

U3 U27U3CV

Display Type

LED

Screen Size

27"

Cabinet Colour

Black

Backlighting Technology

WLED

Display

Screen Technology

IPS

Pixel Pitch

0.1554 x 0.1554 mm

Response Time

4 ms

Horizontal Frequency

30 - 140 kHz

Vertical Frequency

23 - 75 Hz

Screen Shape

Flat

Digital horizontal frequency

30 - 140 kHz

Digital vertical frequency

23 - 75 Hz

Response time measurement type

GTG (Gray to Gray)

Contrast ratio (dynamic)

80000000:1

Pixel density

163 ppi

sRGB coverage (typical)

135.2%

Display diagonal

68.6 cm (27")

Display resolution

3840 x 2160 pixels

HD type

4K Ultra HD

Native aspect ratio

16:9

Display technology

LCD

Panel type

Nano IPS

LED backlight

Yes

Backlight type

W-LED

Touchscreen

No

Display brightness (typical)

400 cd/m²

Response time

4 ms

Anti-glare screen

Yes

Screen shape

Flat

Contrast ratio (typical)

1300:1

Maximum refresh rate

60 Hz

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display number of colours

1.073 billion colours

Pixel pitch

0.1554 x 0.1554 mm

Horizontal scan range

30 - 140 kHz

Vertical scan range

23 - 75 Hz

Viewable size, horizontal

59.7 cm

Viewable size, vertical

33.6 cm

Display diagonal (metric)

68.6 cm

High Dynamic Range (HDR) supported

Yes

High Dynamic Range (HDR) technology

DisplayHDR 400

DDC/CI

Yes

Haze rate

25%

Surface hardness

3H

Colour gamut standard

DCI-P3

Colour gamut

98%

Connectivity

Display Port

DisplayPorts quantity x 1

HDMI

HDMI ports quantity x 2

USB

USB Type-A downstream ports quantity x 4
USB Type-C downstream ports quantity x 1


Brightness

400 cd/m²

Aspect Ratio

16:9

Contrast Ratio

50000000:1

Colours

1.073 billion colours

Maximum Resolution

3840 x 2160

Multimedia

Multimedia Capability

Yes

Speakers

Yes, 6W

Number of speakers

2

RMS rated power

6 W

Built-in speaker(s)

Yes

Built-in camera

No

Power

Power Voltage

100 - 240 V

Power Consumption

0.3 W

Energy efficiency class (SDR)

F

Energy efficiency class (HDR)

G

Energy consumption (SDR) per 1000 hours

26 kWh

Energy consumption (HDR) per 1000 hours

60 kWh

Energy efficiency scale

A to G

Power consumption (off)

0.3 W

Power consumption (typical)

25.45 W

Power consumption (standby)

0.3 W

Power consumption (max)

206 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Input current

3 A

Power supply type

Internal

Dimensions

Weight

6.54 kg (14.42 lb)

Ergonomics

Height adjustment

Yes

Supported Mounting

100 x 100 mm

Swivel angle range

-30 - 30°

Tilt angle

-6.5 - 23°

Cable lock slot

Yes

Cable lock slot type

Kensington

VESA mounting

Yes

Panel mounting interface

100 x 100 mm

Height adjustment

Yes

Height adjustment

15 cm

Pivot

Yes

Pivot angle

-90 - 90°

Swivelling

Yes

Swivel angle range

-30 - 30°

Tilt adjustment

Yes

Tilt angle range

-6.5 - 23°

Picture-in-Picture

Yes

Plug and Play

Yes

Miscellaneous

MTBF

30000 h

Green Certificates

Energy Efficiency Class

A

Energy Star Certified

Yes

Epeat

Gold

Green Compliant

Yes

TCO

TCO 10

Performance

Low Blue Light technology

Yes

Fast charging

Yes

VESA Adaptive Sync support

Yes

Flicker-free technology

Yes

Design

Front bezel colour

Black/Silver

Market positioning

Graphics design

Product colour

Black

Frameless design

Yes

Detachable stand

Yes

Feet colour

Grey

Ports & interfaces

Audio output

Yes

Built-in KVM switch

Yes

Built-in USB hub

Yes

USB hub version

3.2 Gen 2 (3.1 Gen 2)

USB upstream port type

USB Type-C

Number of upstream ports

2

USB Type-A downstream ports quantity

4

USB Type-C downstream ports quantity

1

USB Type-C DisplayPort Alternate Mode

Yes

USB Power Delivery (USB PD)

Yes

USB Power Delivery up to

96 W

HDMI

Yes

HDMI ports quantity

2

HDMI version

2.0

DisplayPorts quantity

1

DisplayPort version

1.4

Headphone out

Yes

Headphone outputs

1

AC (power) in

Yes

Weight & dimensions

Height (without stand)

51.2 mm

Weight (without stand)

4.85 kg

Width (with stand)

612.7 mm

Depth (with stand)

238.4 mm

Height (with stand)

543.6 mm

Weight (with stand)

6.54 kg

Network

Ethernet LAN

Yes

Packaging data

Package width

825 mm

Package depth

162 mm

Package height

480 mm

Package weight

10 kg

Package type

Box

Packaging content

DisplayPort cable length

1.8 m

HDMI cable length

1.8 m

Power cable length

1.8 m

Stand included

Yes

Cables included

AC, HDMI, DisplayPort, USB Type-C

Quick start guide

Yes

Sustainability

Sustainability certificates

EPEAT Gold, TCO

Doesn't contain

Mercury, PVC/BFR

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-25 - 55 °C

Operating relative humidity (H-H)

10 - 85%

Storage relative humidity (H-H)

5 - 93%

Operating altitude

0 - 5000 m

Non-operating altitude

0 - 12192 m

Other features

Bezel thickness type

Frameless

Mean time between failures (MTBF)

30000 h

Local dimming

Yes

Warranty period

3 year(s)

Certification

WEEE,REACH compliant,RoHs compliant,HF

Recycling data

Post-consumer recycled plastic

85%

Recycled content in packaging

80%
