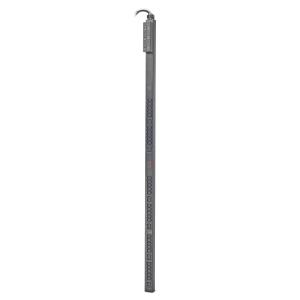

Rack Pdu Basic Zerou12.5kw 208v (30)c13 (6)c19 3 Cord
| Part Number: | AP7568 |
| Language: | NS |
Product Details
Introduction
-Includes: Cord retention bracket(s), Documentation CD, Installation guide, Rack Mounting brackets, Toolless Mounting Kit.
-Multi-branch power input.
-Toolless mounting capability.
-Vertical mounting capability.
Weight & dimensions
Width
56 mm
Depth
89 mm
Height
1778 mm
Dimensions (WxDxH)
56 x 89 x 1778 mm
Weight
6.95 kg
Design
Product colour
Black
Ports & interfaces
Input connection type
Hubbell CS8365C
Output connections
-(30) IEC 320 C13. -(6) IEC 320 C19.
Features
Cable length
0.91 m
Certification
cUL,CSA C22.2 No. 60950-1-03,UL 60950-1,UL
Power
Nominal input voltage
208 V
Nominal output voltage
208 V
Load capacity
12500 VA
Maximum input current per phase
35 A
Maximum total current draw per phase
35 A
Operational conditions
Operating temperature (T-T)
-5 - 45 °C
Storage temperature (T-T)
-25 - 65 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
