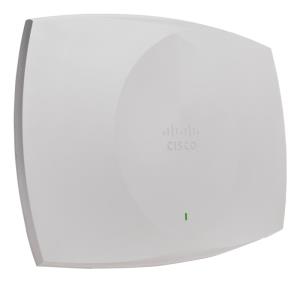

Wireless 9179f (w74 Radio3 Band 4x4)global

Introduction

The Cisco Wireless CW9179F is the industry’s first enterprise-grade, Wi-Fi 7 certified high-density access point, made specifically for connecting large public venues. Connect every corner with this convertible indoor-outdoor unit, suitable for stadiums, arenas, festivals, airports, and anywhere where your audience needs reliable and high-performing connectivity. The CW9179F packs a lot of flexibility in an all-in-one integrated unit with software configurable beam patterns and coverage where you need it.

Features

2.4 GHz

Yes

5 GHz

Yes

6 GHz

Yes

Ethernet LAN data rates

100,1000,2500,5000,10000 Mbit/s

Networking standards

IEEE 802.11be, IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n, IEEE 802.11a, IEEE 802.11g, IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, IEEE 802.3, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11h, IEEE 802.11d, IEEE 802.11i, IEEE 802.1x

MIMO

Yes

MIMO type

Multi User MIMO

Spatial streams

4

Maximal-Ratio Combining (MRC)

Yes

Cyclic Shift Diversity (CSD)

Yes

Dynamic Frequency Selection (DFS)

Yes

BeamForming

Yes

Security

Security algorithms

WPA3, WPA2, SHA-256, OWE, AES-GCMP, EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-FAST

Ports & interfaces

Ethernet LAN (RJ-45) ports

3

Power

Power over Ethernet (PoE)

Yes

Power over Ethernet (PoE) type supported

PoE+

Design

Product colour

White

Antenna

Antenna type

Internal & external

Antenna gain level (max)

12 dBi

Weight & dimensions

Width

475 mm

Depth

330 mm

Height

73 mm

Weight

4.54 kg

Packaging content

Quantity per pack

1 pc(s)

Operational conditions

Operating relative humidity (H-H)

10 - 90%

Operating temperature (T-T)

-20 - 60 °C

Storage temperature (T-T)

-30 - 70 °C
