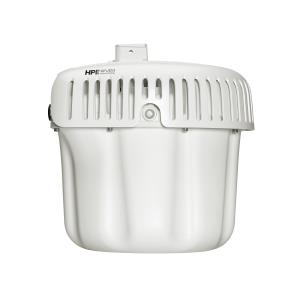

ARUBA AP-585 (RW) UNIFIED AP

Introduction

Aruba 580 Series Outdoor Access Points
Ultimate Wi-Fi 6 performance with high power Bluetooth and Zigbee radios and 5 Gbps Ethernet for the most demanding outdoor locations.

Ultimate performance. Perfect for IoT.
Weatherproof and temperature hardened APs to deliver the highest Wi-Fi 6 performance – with flexible power options.

Outdoor connectivity you can depend on
Built to survive the harshest environments, the Aruba 580 Series AP is IP66/67 rated to survive high wind, extreme temperatures, and moisture – all backed by a limited lifetime warranty.

IoT ready
The Aruba 580 Series supports the most demanding industrial IoT environments and manufacturing facilities with high-power Bluetooth/Zigbee and advanced IoT coexistence to operate at maximum capacity without interference.

Seamless Wi-Fi 6 connectivity
With optimized connectivity of 2.97 Gbps combined aggregate data rates to support high-density mobile and IoT demands, the Aruba 580 Series is Wi-Fi 6 certified* for greater efficiency and better performance to future proof your investment.

Simple and secure
Integral part of SASE and zero trust security, these APs protect wireless traffic, authenticate users, and assign role-based access policies with Dynamic Segmentation, WPA3 and Enhanced Open.

The ultimate in Wi-Fi 6 performance for the harshest outdoor environments
Our only outdoor AP to feature high power Bluetooth and Zigbee, plus multi-gigabit connectivity for demanding environments including public venues.

IP66/67 Rated for Harsh Outdoor Environments
Purpose built to survive in the harshest outdoor environments and extreme temperatures (-40 to +65° C).

High power Bluetooth 5 and 802.15.4/Zigbee
Simplified deployment and management of IoT devices for Industrial IoT and manufacturing environments.

Wi-Fi 6 supported
Improve efficiency and security with Wi-Fi 6 capabilities including MU-MIMO, OFDMA, WPA3 and Enhanced Open (Wi-Fi Alliance certification in process).

Automatic role-based access enforcement
Centrally configure and automatically enforce role-based policies across wired and wireless networks using Dynamic Segmentation and Policy Enforcement Firewalls.

5 Gbps Smart Rate Ethernet
With 5 Gbps capacity, the Aruba 580 Series meets the needs of high-density environments and provides business continuity.

Powerful power options
Option to connect using direct AC power – no adapter required – along with PSE+ and PoE.

Features

2.4 GHz

Yes

5 GHz

Yes

6 GHz

No

Maximum data transfer rate

2970 Mbit/s

Ethernet LAN data rates

1000,5000 Mbit/s

Frequency band

20/40 (2.4 GHz), 20/40/80/(80+80) (5 GHz), peak data rate 2.97 Gbps, maximum data rate 3.55 Gbps

Networking standards

IEEE 802.11ax, IEEE 802.11mc

Number of users

1024 user(s)

Bluetooth

Yes

Bluetooth version

5.0

MIMO

Yes

MIMO type

Single User MIMO

Spread spectrum method

DSSS, OFDM, OFDMA

MACsec support

No

Security

Security algorithms

WPA2, WPA3

Management features

Access point management

On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service

Ports & interfaces

Ethernet LAN (RJ-45) ports

2

USB 2.0 ports quantity

1

USB connector type

USB Type-C

Power

Power over Ethernet (PoE)

Yes

Power consumption (typical)

71 W

Design

Placement

Ceiling, Pole, Wall

Product colour

White

International Protection (IP) code

IP66, IP67

Recommended usage

Outdoor

Antenna

Antenna type

Internal

Antenna direction type

Omni-directional

Antenna features

Integrated antenna

Antennas quantity

4

Antenna gain level (max)

5.8 dBi

Performance

Compatible operating systems

HPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS 8 HPE Aruba Networking Operating System OS10

Certificates

Compliance certificates

Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)

Certification

Wi-Fi Alliance Bluetooth SIG Ethernet Alliance (E0, PoE PD device, class 6; E2, PoE PSE device, class 3)

Weight & dimensions

Width

324 mm

Depth

313 mm

Weight

5.24 kg

Packaging data

Package width

431 mm

Package depth

415 mm

Package height

442 mm

Package weight

7.81 kg

Other features

I/O ports

Ethernet wired port (RJ-45) Ethernet wired port (RJ-45) PSE Ethernet wired port (SFP+) USB-C console interface

Weight (imperial)

5.24 kg (11.6 lbs)

Operational conditions

Operating relative humidity (H-H)

5 - 93%

Operating temperature (T-T)

-40 - 65 °C

Storage temperature (T-T)

-40 - 70 °C

Operating altitude

0 - 3000 m

Sustainability

Sustainable technologies and materials

320 mm
