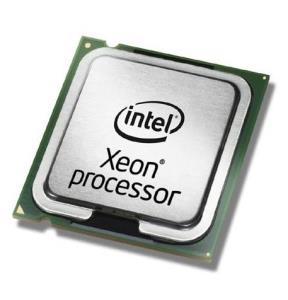

Xeon Processor X5680 3.33 GHz 6.4 Gt/s 12MB Cache Oem

Introduction

Designed for industry-leading performance and maximum energy efficiency, these versatile 1-way and 2-way 64-bit multi-core servers and workstations are ideally suited to a wide range of infrastructure, cloud, high-density, and high performance computing (HPC) applications.

Processor

Processor manufacturer

Intel

Processor model

X5680

Processor base frequency

3.33 GHz

Processor family

Intel® Xeon® 5000 Sequence

Processor cores

6

Processor socket

LGA 1366 (Socket B)

Component for

Server/workstation

Processor lithography

32 nm

Processor series

Intel Xeon 5600 Series

Processor threads

12

System bus rate

6.4 GT/s

Processor operating modes

64-bit

Processor boost frequency

3.6 GHz

Processor cache

12 MB

Processor cache type

Smart Cache

Thermal Design Power (TDP)

130 W

Box

N

Cooler included

N

VID Voltage Range

0.75 - 1.35 V

Stepping

B1

Bus type

QPI

CPU multiplier (bus/core ratio)

25

Number of QPI links

2

Memory bandwidth supported by processor (max)

32 GB/s

Processor codename

Westmere EP

Processor code

SLBV5

Processor ARK ID

47916

Memory

Maximum internal memory supported by processor

288 GB

Memory types supported by processor

DDR3-SDRAM

Memory channels

Triple-channel

ECC

Y

Graphics

On-board graphics card

N

Features

Execute Disable Bit

Y

Idle States

Y

Thermal Monitoring Technologies

N

Market segment

Server

Supported instruction sets

SSE4.2

Bandwidth

32000 MB/s

CPU configuration (max)

2

Embedded options available

N

Physical Address Extension (PAE)

40 bit

Harmonized System (HS) code

8542310001

Export Control Classification Number (ECCN)

5A992C

Commodity Classification Automated Tracking System (CCATS)

G077159

Processor special features

Intel® Hyper Threading Technology (Intel® HT Technology)

Y

Intel® Turbo Boost Technology

1.0

Intel® AES New Instructions (Intel® AES-NI)

Y

Enhanced Intel SpeedStep Technology

Y

Intel Trusted Execution Technology

Y

Intel Enhanced Halt State

Y

Intel VT-x with Extended Page Tables (EPT)

Y

Intel Demand Based Switching

Y

Intel 64

Y

Intel Virtualization Technology (VT-x)

Y

Intel Virtualization Technology for Directed I/O (VT-d)

Y

Operational conditions

Maximum operating temperature

78.5 °C

Tcase

78.5 °C

Technical details

Born on date

Q1'10

Bus bandwidth

6.4

Bus type units

GT/s

Launch date

Q1'10

Processor cache

12288 KB

Processor core voltage

0.750-1.350 V

Product name

Intel Xeon X5680 (12M Cache, 3.33 GHz, 6.40 GT/s Intel QPI)

Product type

Processor

Status

Discontinued

Maximum memory

288 GB

Processor brand name

Intel Xeon

Supported memory types

DDR3-SDRAM

Last change

63903513

Product family

Intel Xeon Processor 5000 Sequence

Bus speed

6.4 GT/s

Packaging data

Package type

Retail box

Weight & dimensions

Processor package size

42.5mm x 45mm

Other features

Maximum internal memory

288 GB

Maximum internal memory

294912 MB

Cache memory

12 MB
