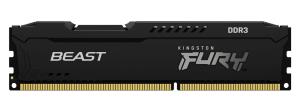

8GB DDR3 1600MHz Cl10 DIMM (kit Of 2) Fury Beast Black

Introduction

FURY KF316C10BBK2/8 is a kit of two 512M x 64-bit (4GB) DDR3-1600 CL10 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 512M x 8-bit FBGA components per module. Total kit capacity is 8GB. Each module has been tested to run at DDR3-1600 at a low latency timing of 10-10-10 at 1.5V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. Each 240-pin DIMM uses gold contact fingers.

Other features

Country of origin

Taiwan

Harmonized System (HS) code

84733020

Features

CAS latency

10

Internal memory

8 GB

Memory layout (modules x size)

2 x 4 GB

Internal memory type

DDR3

Memory clock speed

1600 MHz

Component for

PC/Server

Memory form factor

240-pin DIMM

ECC

N

Memory channels

Dual-channel

Memory voltage

1.5 V

Module configuration

512M x 64

Row cycle time

48.125 ns

Refresh row cycle time

260 ns

Row active time

37.5 ns

Cooling type

Heatsink

Backlight

N

Windows operating systems supported

Y

Linux operating systems supported

Y

JEDEC standard

Y

Operational conditions

Operating temperature (T-T)

0 - 85 °C

Storage temperature (T-T)

-55 - 100 °C

Weight & dimensions

Width

133.3 mm

Depth

7.1 mm

Height

34 mm
