CAT6 4x4 Hdmi 4k60 Hdbaset Matrix Extender 150m

Introduction

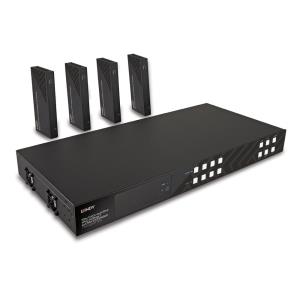

The Lindy 150m Cat.6 4x4 HDMI 4K60 HDBaseT Matrix Extender is an high-end and complete solution to switch and extend 4 HDMI signals to 4 HDBaseT receivers using Cat.6 or above cables up to 150m.

Supporting resolutions up to 4K60Hz including HDR and 1080p, the Matrix Extender is designed for use in Pro AV and digital signage applications for a variety of settings such as education, retail, immersive displays at events and conference rooms.

It supports several signals and features such as analog and coax de-embedded audio, IR matrix function and RS-232 control or pass-through signals. An advanced EDID management allow the user to select different EDID modes while the integrated HDMI loop-out ports enables simultaneous viewing so that a local display can be connected for monitoring each HDBaseT output, or to create additional viewing zones.

PoC (Power over Cable) functionality allows power to be supplied alongside data through Cat.6 network cable between the transmitter and any HDBaseT receiver, meaning only the transmitter unit needs to be powered on.

This unit can be managed by pushing the buttons on the front panel via OSD menu with a OLED screen, IR remote control (included), RS-232 or TCP/IP commands and web GUI.

Features

Type

AV transmitter & receiver

Maximum resolution

3840 x 2160 pixels

Cable types supported

Cat6

Maximum transfer distance

150 m

High Dynamic Range (HDR) supported

Yes

EDID management

Yes

HDCP pass-through

Yes

Infrared (IR) frequency range

20 - 60 kHz

Supported video modes

1080p

Bandwidth

18 Gbit/s

Audio formats supported

LPCM

On/off switch

Yes

HDCP

Yes

Material

Metal

Signal-to-Noise Ratio (SNR)

90 dB

HDCP version

2.2

Product colour

Black

Certification

California Proposition 65

Ports & interfaces

Connectivity technology

Wired

RJ-45 output ports

4

HDBaseT port

Yes

HDMI in

4

Number of HDMI outputs

5

HDMI version

2.0

RS-232 input ports

2

Digital audio coaxial out

4

Audio (L/R) out

4

3.5 mm (1/8-inch) in

Yes

3.5 mm (1/8-inch) out

Yes

Audio RCA outputs

4

Power

Power source type

AC

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Power requirements

60 W

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

20 - 90%

Weight & dimensions

Width

440 mm

Depth

200 mm

Height

45 mm

Weight

5.31 kg

Receiver dimensions (WxDxH)

140 x 65 x 18 mm

Packaging data

Package width

510 mm

Package depth

401 mm

Package height

98 mm

Package weight

6.33 kg

Package type

Box

Packaging content

Manual

Yes

Packaging content

4x4 HDBaseT Extender Matrix - Transmitter 4 x HDBaseT Receivers 5 x IR Emitter Cable, 1.5m 5 x IR Receiver Cable, 1.5m 10 x Mounting Ears & Screws 4 x 3-Pin Terminal Block 4 x 5-Pin Terminal Block RS-232 Male to Female cable, 1.5m 4 x mains cables (EU, UK, US & AUS), 1.5m Lindy Manual

Technical details

Sustainability compliance

Yes

Sustainability certificates

CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA

Warranty period

2 year(s)
