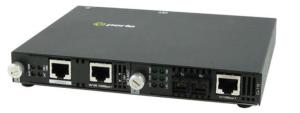

Smi110m2lc2 10100 Fast Ethernet Ip Managed Standalone Media And (05070921)
| Part Number: | 05070921 |
| Language: | IN |
Product Details
Features
Internal
No
Product colour
Black
Reset button
Yes
LED indicators
Yes
Housing material
Metal
International Protection (IP) code
IP20
DIN rail mounting
Yes
Network
Maximum data transfer rate
100 Mbit/s
Converter input interface
100Base-TX, 10Base-TX
Networking standards
IEEE 802.3u, IEEE 802.1p
Ethernet interface type
Fast Ethernet
Ethernet LAN data rates
10,100 Mbit/s
Copper ethernet cabling technology
100BASE-TX, 10BASE-TX
Fiber ethernet cabling technology
100BASE-FX
VLAN support
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Duplex system
Full
Cable types supported
Cat5
Performance
Maximum transfer distance
2000 m
Wavelength
1310 nm
Fiber mode structure
Multi-mode
Fiber cable diameters supported (core/cladding)
62.5/125 µm
Tx power (min)
-20 dBmW
Tx power (max)
-12 dBmW
Rx power (min)
-30 dBmW
Rx power (max)
-14 dBmW
Mean time between failures (MTBF)
246403 h
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
2
Fiber optic connector
LC
DC-in jack
Yes
Power
Input voltage
12 V
Input current
0.34 A
Power consumption (typical)
4.1 W
Power supply input voltage
100 - 240 V
External power adapter
Yes
Power plug type
Type G
Sustainability
Doesn't contain
Lead, Mercury, Cadmium
Weight & dimensions
Width
175 mm
Depth
145 mm
Height
23 mm
Weight
722 g
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-25 - 70 °C
Operating relative humidity (H-H)
5 - 90%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3048 m
Packaging data
Package width
300 mm
Package depth
200 mm
Package height
70 mm
Package weight
1.2 kg
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance
Yes
Compliance certificates
REACH, RoHS, Federal Communications Commission (FCC), UL, CE
Logistics data
Export Control Classification Number (ECCN)
5A992
Quantity per pack
1 pc(s)
Other features
MAC address table
1024 entries
UNSPSC-code
43201553
