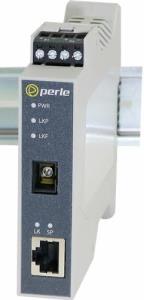

Sr-1110-sc40u Media Converter10/100/1000base-t Singl (05091820)

Introduction

Perle SR-1110 DIN Rail Media Converters transparently connect UTP copper to fiber. These rate converting Media Converters provide an economical path to:

- extend the life of non-fiber based equipment by enabling data transmission from 10/100/1000Base-T devices over gigabit fiber
- enable Gigabit speeds across a multimode fiber link up to 2km in length (learn more)
- extend the distance of an existing network by linking CAT5/6/7 cabling to multimode or single mode fiber
- extend the distance between two copper-based devices or networks
- protect Ethernet data from EMI noise and interference by inter-connecting your copper-Ethernet devices over fiber in industrial plants.

Some SR-1110 Media Converters are also available with an SFP slot or support for -40°C to +75°C (-40°F to +167°F) extended operating temperatures. Network Administrators can rest assured with Perle's advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Far End Fault, and Pause which make the end to end link completely transparent. This allows for more efficient troubleshooting and less on-site maintenance. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make SR-1110 Rate Converting Media Converters the smart choice for IT professionals.

Network

Maximum data transfer rate

1000 Mbit/s

Converter input interface

10Base-T, 100Base-T, 1000Base-T

Networking standards

IEEE 802.3

Fiber ethernet cabling technology

1000BASE-BX-U

VLAN support

Yes

Auto MDI/MDI-X

Yes

Auto-negotiation

Yes

Cable types supported

Cat5, Cat6, Cat7

Performance

Maximum transfer distance

40000 m

Wavelength

1490 nm

Fiber cable diameters supported (core/cladding)

9/125 µm

Tx power (min)

-3 dBmW

Tx power (max)

2 dBmW

Rx power (min)

-23 dBmW

Rx power (max)

-3 dBmW

Link budget

20 dB

Buffer size

1000 KB

Mean time between failures (MTBF)

564766 h

Features

LED indicators

Yes

Product colour

Grey, White

Housing material

Plastic

International Protection (IP) code

IP20

DIN rail mounting

Yes

Ports & interfaces

Connectivity technology

Wired

Ethernet LAN (RJ-45) ports

1

Fiber ports quantity

1

Fiber optic connector

SC

Terminal block port

Yes

Power

Input voltage

12 - 60 V

Power consumption (typical)

2.16 W

Weight & dimensions

Width

114 mm

Depth

100 mm

Height

22.5 mm

Weight

120 g

Operational conditions

Operating temperature (T-T)

-10 - 60 °C

Storage temperature (T-T)

-25 - 70 °C

Operating relative humidity (H-H)

5 - 90%

Storage relative humidity (H-H)

5 - 95%

Operating altitude

0 - 3000 m

Packaging data

Package width

145 mm

Package depth

105 mm

Package height

30 mm

Package weight

170 g
