Multi-point Station 500mbps Incl1xradio 1xpoe Injector Psu

Introduction

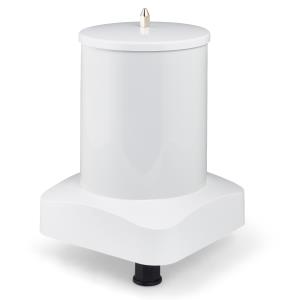

The SIL BASE 500-360 is a multipoint receiver with built-in 360 degree omni antennas.
Using MIMO spatial multiplexing and its ultrafast radio speed, the BASE 500-360 offers up to 500Mbps full duplex.

Works with the MICRO single radio as a remote transmitter at distances up to 1km.

The SIL BASE 500-360 is fully integrated with our FREE SilverView network monitoring software ensuring you have an outstanding feature packed solution.

Features

2.4 GHz

No

5 GHz

Yes

Maximum data transfer rate

500 Mbit/s

Ethernet LAN data rates

10,100,1000 Mbit/s

Throughput data rate

867 Mbit/s

Frequency band

5.1 - 5.8 GHz

Bandwidth

5 GHz

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af

Cabling technology

10/100/1000Base-T(X)

Channels quantity

25 channels

Channel bandwidth

40 MHz

Automatic channel selection

Yes

Automatic channel scanning

Yes

Control channel mode

Tagged & untagged

Full duplex

Yes

Duplex mode auto-negotiation

Yes

Auto MDI/MDI-X

Yes

MIMO

Yes

MIMO type

Multi User MIMO

Modulation

16-QAM, 64-QAM, 256-QAM, BPSK, QPSK

Fit AP mode features

Mesh networking

WLAN channel features

WLAN channel management

VLAN support

Yes

Virtual LAN features

IP subnet–based VLAN, Port-based VLAN, Protocol-based VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID)

Number of VLAN IDs

4095

Automatic interference avoidance

Yes

Wireless isolation

Yes

STA isolation (same VLAN)

Yes

Band steering

Yes

Dynamic Frequency Selection (DFS)

Yes

Quality of Service (QoS) support

Yes

Maximum indoor range

1000 m

Maximum outdoor range

1000 m

Transmitting power

26 dBmW

Receiver sensitivity

-82dBm@54Mbps, -74dBm@300Mbps, -68dBm@1.3Gbps

Security

Security algorithms

256-bit AES, SNMP, SNMPv2, SSH

MAC address filtering

Yes

Service Set Identifier (SSID) features

Hidden SSID, Multiple SSIDs, SSID broadcast

Management features

Web-based management

Yes

Local AP management

Telnet

Firmware upgradeable

Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

Power

Power over Ethernet (PoE)

Yes

AC input voltage

100 - 240 V

Output voltage

24-48, 48-56 V

Power consumption (typical)

6 W

Power consumption (max)

16 W

Power supply

15.4 W

Power plug type

Type G

Design

Placement

Pole

Product colour

White

International Protection (IP) code

IP66

Reset button

Yes

LED indicators

LAN, Signal strength

Antenna

Antenna type

Internal

Antenna direction type

Omni-directional

Antenna features

Integrated antenna

Antennas quantity

4

Antenna gain level (max)

7 dBi

Antenna connector type

RP-MMCX

Number of connectors

2

Polarization

Dual polarization

Performance

Compatible operating systems

Microsoft Windows, Mac OS, Linux Distributions

Minimum system requirements

Internet Explorer, Google Chrome, Mozilla Firefox

Certificates

Certification

CE, FCC

Weight & dimensions

Width

240 mm

Depth

240 mm

Height

300 mm

Weight

2.5 kg

Packaging data

Package width

240 mm

Package depth

240 mm

Package height

300 mm

Package weight

3 kg

Package type

Box

Packaging content

Quantity per pack

1 pc(s)

PoE adapter included

Yes

Mounting kit

Yes

Quick start guide

Yes

Packaging content

Includes 1 x radio, 1 x PoE injector PSU and 1 x Tilt and Swivel 3 Axis mounting bracket.

Bundled software

SilverView Pro Network Management & Monitoring Software

Operational conditions

Operating relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

-20 - 70 °C

Storage temperature (T-T)

-40 - 90 °C

Storage relative humidity (H-H)

0 - 95%

Logistics data

UK Trade Tariff code

85176200

Country of origin

United Kingdom
