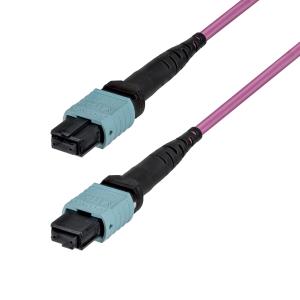

Fiber Optic Cable - 12f Type-b, Om4 Multimode Mtp/pc Female 7m

Introduction

Safely route high-density MTP/MPO fiber cabling in plenum spaces

This OM4 MTP®/MPO multimode fiber cable supports high-density 40G and 100G connections between switches and servers, helping reduce cable bulk and simplify routing across data hall racks. The 12-fiber design supports high-speed MTP®/MPO connectivity for multi-fiber network applications, while the Erika Violet jacket follows TIA standards to clearly distinguish OM4 from Aqua OM3 cabling.

Engineered for Reliable Multimode Performance

Constructed with OM4 50/125µm laser-optimized Corning glass, this cable delivers consistent high-bandwidth transmission for data center and backbone links. Type-B polarity MTP® Elite connector maintains proper transmit/receive alignment for multi-lane connections, ensuring reliable performance without additional crossover components. Each cable is individually tested for signal integrity.

Plenum-Rated for In-Building Installation

The OFNP plenum-rated jacket meets strict fire and low-smoke requirements, making it suitable for routing through air-handling spaces in commercial and enterprise environments, including data center and in-wall pathways.

Deploy in Scalable Fiber Networks

Designed for use with structured MTP®/MPO systems, including multi-fiber trunks, cassettes, and patching setups, this cable supports scalability for growing fiber networks and straightforward migration between 10G, 40G, and 100G infrastructure. The 12-fiber format enables high-density connectivity while reducing overall cable count for cleaner, more efficient installations.

Features

Cable length

7 m

Fibre optic type

OM4

Cable shape

Round

Connector 1

MPO/MTP

Connector 2

MPO/MTP

Connector 1 gender

Male

Connector 2 gender

Male

Connector polish type

PC

Product colour

Violet

Core diameter

50 µm

Cladding diameter

125 µm

Fiber mode structure

Multi-mode

Data transfer rate

100 Gbit/s

Jacket material

Optical fiber non-conductive plenum (OFNP)

Polarity

B

Certificates

Compliance certificates

RoHS, CE

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-20 - 70 °C

Weight & dimensions

Cable diameter

3 mm

Weight

63 g

Packaging data

Package width

300 mm

Package depth

250 mm

Package height

15 mm

Packaging content

Quantity per pack

1 pc(s)

Logistics data

Master (outer) case width

420 mm

Master (outer) case length

420 mm

Master (outer) case height

270 mm

Products per master (outer) case

80 pc(s)
