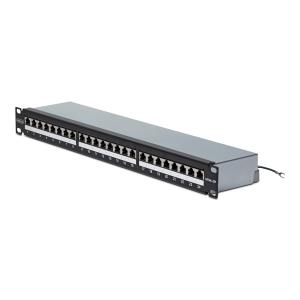

Through Patch Panel 1u Feed 110 Punch Down/CAT6a Stp

Introduction

Set up 24 Cat6A connections using this shielded 110 punch down Ethernet patch panel

Streamline rack-mounted network setups with this 24-Port 1U Shielded Cat6A Patch Panel with 110 punch-down termination. The shielded patch panel provides a secure, professional solution for terminating Cat6A cabling in standard 19-inch racks.

Secure and Reliable Termination

The shielded 110 patch panel is ideal for permanent network installations and incorporates Krone/110 IDC contacts for clean vertical termination of 23-26 AWG STP solid wire Cat6A cabling. Phosphor bronze contacts plated with 50 micro-inches of hard gold maintain consistent signal integrity. Dual T568A/B wiring labels support accurate termination and reduce wiring errors. The patch panel is UL listed for electrical safety in enterprise network environments.

Durable Construction

The 1U patch panel assembly features a protective metal housing cover and grounding wire for optimal EMI protection and helps maintain signal integrity in high-density installations. It is fully compliant with ANSI/TIA/EIA-568-B.2-1, ISO/IEC 11801 (2nd Edition: 2002), EN 50173-1: 2002, and ANSI/TIA/EIA-310-D standards, ensuring compatibility with network cabling infrastructure and 19-inch server racks.

Network

Ports quantity

24

Connector(s)

RJ-45

Cable types supported

Cat6a

Design

Product colour

Black

Mounting

Rack mounting

Rack capacity

1U

Operational conditions

Operating temperature (T-T)

-10 - 60 °C

Operating relative humidity (H-H)

-40 - 70%

Storage temperature (T-T)

0 - 85 °C

Weight & dimensions

Width

111.4 mm

Height

44.4 mm

Depth

482.6 mm

Weight

1 kg

Packaging content

Quick start guide

Yes

Packaging data

Package width

520 mm

Package depth

145 mm

Package height

50 mm

Package weight

1.9 kg

Logistics data

Master (outer) case width

535 mm

Master (outer) case length

310 mm

Master (outer) case height

176 mm

Products per master (outer) case

6 pc(s)
