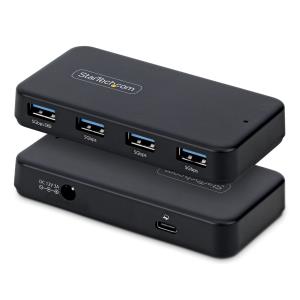

USB-a Hub 4-port 5gbps - Self-powered - 2-in-1 USB-c And USB-a Host Cable

Introduction

Add four 5Gbps USB-A ports (one with BC 1.2) to your laptop or PC using a single USB-C or USB-A connection

This 4-port SuperSpeed USB hub lets you instantly add four USB-A 3.0 ports, including one BC 1.2 charging port, from a single USB connection-ideal for connecting keyboards, mice, flash drives, and external storage devices at the same time.

Fast Charge, Even Without a Host

The dedicated BC 1.2 fast-charge port delivers up to 1.5A (7.5W) and supports CDP for data and charging or DCP for charging when the hub isn't connected to a computer. A 24W total power budget is shared across all ports for reliable device charging.

Reliable, Self-Powered Operation

Powered by the included 24W external adapter, the self-powered hub ensures stable performance even with multiple devices connected. Built-in overcurrent and overvoltage protection helps reduce device dropouts and protects the host system, while support for Wake on USB and USB event monitoring enhances manageability.

Easy Integration

A removable 2-in-1 USB-C/USB-A host cable provides flexible connectivity with modern and legacy systems.

Sustainable Design

The hub features a 70% post-consumer recycled (PCR) plastic enclosure and a 35% PCR TPE jacket, helping reduce environmental impact and support ESG requirements.

Ports & interfaces

Host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-C

Hub interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Ports quantity

4

DC-in jack

Yes

Features

Data transfer rate

5000 Mbit/s

Product colour

Black

Housing material

Plastic

LED indicators

Yes

Cable jacket material

Thermoplastic elastomer (TPE)

Cable length

1 m

Power

Power consumption (typical)

24 W

Input voltage

1 V

Input current

0.7 A

Output voltage

12 V

Output current

2 A

Weight & dimensions

Width

52 mm

Depth

101 mm

Height

16.5 mm

Weight

55.9 g

Packaging data

Quantity per pack

1 pc(s)

Package width

200 mm

Package depth

147 mm

Package height

49 mm

Packaging content

Interface adapters included

USB Type-C female - USB Type-A male

AC adapter included

Yes

Included power plug types

UK, EU

Cables included

USB Type-C to USB Type-C

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 90%

Performance

Mean time between failures (MTBF)

117452 h

Logistics data

Master (outer) case width

430 mm

Master (outer) case length

275 mm

Master (outer) case height

325 mm

Products per master (outer) case

20 pc(s)

Other features

Chipset

VIA - VL817S
